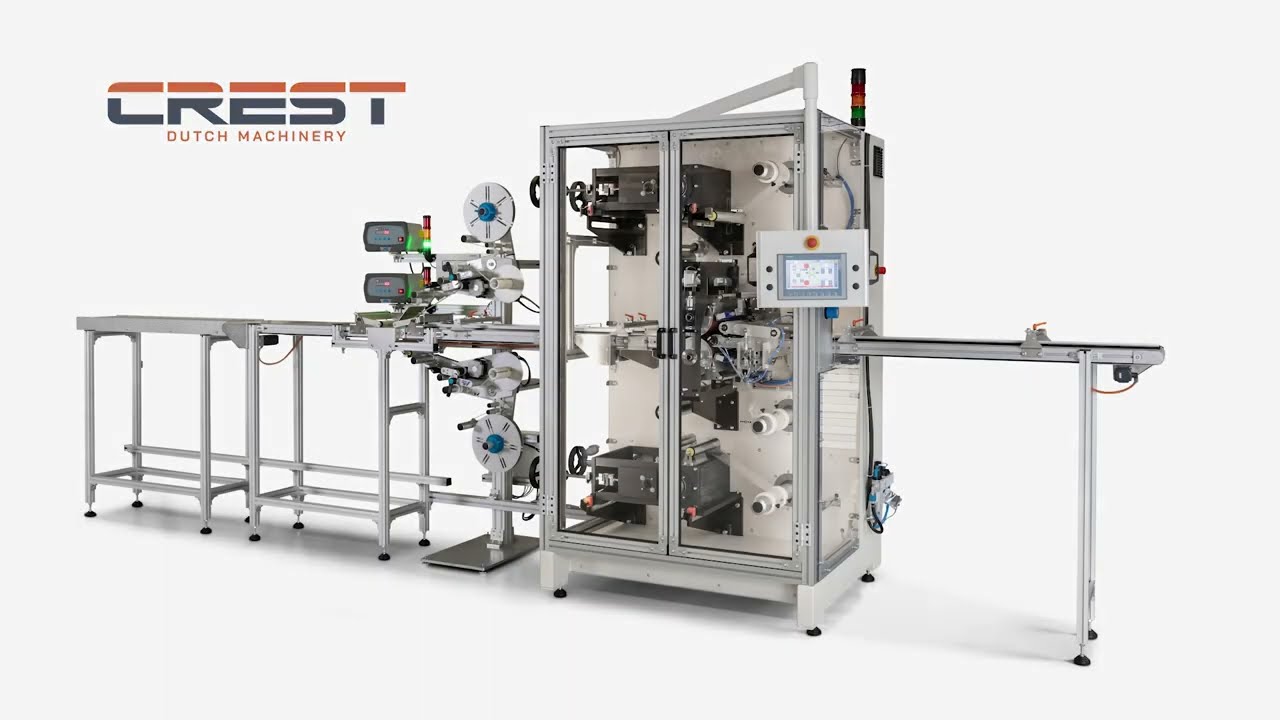

Glass Protection Laminator
ADVANCED INDUSTRIAL LAMINATING SYSTEM DESIGNED TO APPLY PROTECTIVE FOILS SIMULTANEOUSLY ONTO BOTH SIDES OF COMPLEX SHAPES AND CURVED SURFACES WITH ABSOLUTE PRECISION.
The Glass Protection Laminator provides automated dual-side protection for rigid substrates, non-flat materials, and premium treated surfaces. By integrating high-precision die-cutters, it matches the film exactly to your product’s specific dimensions, eliminating defects and creases to deliver flawless surface shielding at high industrial outputs.
Where do you need it for?
01 / Complex contour components
Precision surface shielding for non-flat geometric parts
Automated high-speed lamination of protective films onto curved or multi-dimensional surfaces ensures optimal clarity and finish. It perfectly matches complex, non-flat shapes without trapped air or wrinkling, making it ideal for advanced industrial panels and formed parts.
02 / Premium architectural materials
Flawless protective coatings for high-end structural elements
Protect premium treated panels, bent sheets, and sensitive decorative substrates from scratches and environmental hazards during transport and final installation. The integrated die-cutting system handles custom, tailored shapes seamlessly while maintaining continuous, rapid factory throughput.
03 / Sensitive optical & electronic assemblies
Dual-side surface protection for highly delicate layers
Apply double-sided protective foil onto thin, treated, or chemically strengthened materials used in high-tech displays, solar applications, or technical control interfaces. The synchronized process completely prevents micro-defects, edge lift, and physical material stress.
BUILT FOR HIGH-PRECISION AUTOMATED SURFACE PROCESSING
This heavy-duty system is engineered for continuous industrial operations requiring flawless edge-to-edge protective film application on challenging substrates. Featuring an intelligent configuration of synchronized servo-drives, dual pneumatic unwinding shafts, and automated infeed/outfeed material transfer stations, it removes trim waste from the end product instantly. The industrial-grade silicone rollers deliver perfectly uniform pressure across the surface, guaranteeing reliable quality regardless of your specific product design.
Integrated real-time contour cutting
The machine features built-in top and bottom die-cutters utilizing versatile magnetic rolls. This allows the system to cut the protective film to the exact outline of your specific parts on the fly, entirely eliminating external pre-cutting steps and minimizing material scrap.
Advanced HMI recipe management
Equipped with an intuitive touchscreen control panel (Siemens S7-1200 control), operators can easily store and load full production recipes, including individual settings for laminating speed, web tension, and precise alignment offsets for different product batches.
Best suited for
- Dual-side protective film application on highly curved or flat substrates.
- High-volume production lines running up to 120 pieces per hour.
- Chemically tempered glass sheets requiring ultra-precise edge-to-edge finish.
- Contoured materials needing custom foil shapes trimmed in real-time.
- Bubble-free and crease-free lamination on delicate optical glass components.
- Automated robotic integration into existing upstream and downstream material handling loops.
- Custom manufacturing processes utilizing advanced HMI recipe-driven parameters.
WHY IT PERFORMS
Complex contour components
Synchronized inline processing enables the machine to safely transfer, align, and laminate complex bent substrates smoothly. Double-sided film application prevents surface damage during all consecutive assembly and transport phases.
Premium materials and equipment
The industrial pneumatic nip rollers exert a precise pressure distribution of up to 5 N/mm. Combined with specialized roller material, this uniform loading laminates the most challenging foils effortlessly, resulting in a perfectly laminated product.
Sensitive optical & electronic assemblies
Advanced dancer roller regulators stabilize web tension dynamically. This ensures that ultra-thin electronic glass plates are protected without experiencing structural stress or geometric distortion.
Suitable materials
Working with thin glass or another specific substrate? Contact our specialists.
WHEN TO CHOOSE THE GLASS PROTECTION LAMINATOR
- Your production demands high-speed, automated dual-side protective foil application without any human error.
- You need to process complex, curved glass shapes that standard laminators cannot handle.
- Your quality standards require 100% bubble-free and crease-free results on premium glass surfaces.
- You want an all-in-one system that laminates and die-cuts custom film contours in a single pass.
- Your facility operates at high volumes and targets a process speed of 120 parts hourly.
- Your workflow requires seamless integration using automated inbound and outbound pick-and-place units.
- You wish to minimize material waste by cleanly removing trim waste automatically inline.
Frequently asked questions
It is a specialized, fully automated industrial machine manufactured by Crest Dutch Machinery B.V. It is specifically engineered to apply protective film flawlessly to both sides of curved sheets of glass simultaneously, without the need for manual intervention.
It is optimized to handle chemically tempered, bent glass sheets (up to 250 mm wide) and protective foils like Nitto RP207. It applies in-line pre-cut adhesive film precisely matching the contour of the glass. The machine however is not material dependent and can also process other flat or bent materials like plastics, wood or even cardboard.
In its standard industrial configuration, the system delivers high-throughput automation with a dedicated processing speed of up to 120 completed glass pieces per hour. Other speeds can be discussed and are material and size dependent.
Operator safety is ensured via heavy guard doors. The system is built with an emergency door switch circuit and five strategically placed emergency stop buttons. Smart machine control, CE compliant design and a jog mode for safe low-speed operations ensure the safest working environment for your staff.
Yes. A fully automated Pick & Place infeed aligns each part to compensate for positional variation, and an outfeed Pick & Place enables semi-automatic tray loading. The system integrates seamlessly with upstream and downstream material handling.
Yes, Crest specializes in custom-built solutions. The machine can be adapted regarding maximum process lengths and widths, table line heights, and arm configurations to integrate perfectly with your upstream and downstream factory equipment. Any other requirements? Talk to our engineers to discuss them.
Talk to a Crest engineer about your ideal solution
Tell us what you need, the volumes you run and the materials you handle. We confirm whether the Glass Protection Laminator is the right fit, whether you need additional options, and how we can configure the line to match your existing upstream and downstream equipment.
Direct contact with engineering. No reseller layer. Response within one business day.
