USED CREST MLC-1600 4-ROLL LAMINATOR

MLC-1600 4-ROLL LAMINATOR
BRAND: CREST
CONDITION: USED

SPECIFICATIONS:

  • Modular Laminator Crest MLC-1600, 4-roll configuration
  • Max. working width 1575 mm (62 inch), roller width 1675 mm
  • 4 pressure rollers, of which the 2 front rollers are heated (max. 135 °C)
  • Line pressure up to 2.5 N/mm, digital read-out
  • Roller speed up to 8 m/min, switchable rotating direction
  • Roller nip opening up to 35 mm
  • Substrate thickness up to 30 mm
  • 3 unwind/wind-up positions with 3+3 auto grip shafts
  • Unwind/wind-up diameter up to 200 mm, core 75 mm (3 inch)
  • Swinging feed-in table with removable image guide
  • Swinging feed-out table
  • Control panel with digital display on swing arm, operation from both sides
  • Emergency stop buttons, 2 emergency cable switches, foot pedal with cover
  • Castors for easy moving
  • Dimensions (W x D x H): 2320 x 1210 x 1610 mm, net weight 1090 kg
  • Power supply heated: 16-19 A, 3 phase

Price: on request
Excluding transport and installation.
Changes to equipment or specifications will affect the price!

Discuss your application
Crest MLC-1600 Used 4-roll 2 heated front rollers
Used Crest MLC-1600 4-roll laminator with red pressure rollers, control panel on swing arm and foot pedal

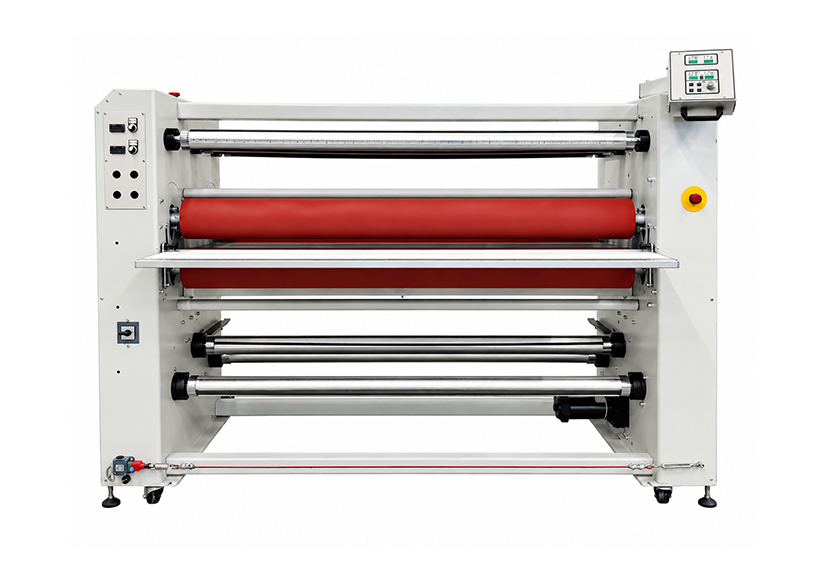

Front view of a used Crest MLC-1600 4-roll laminator with feed-in table and unwind/wind-up shafts

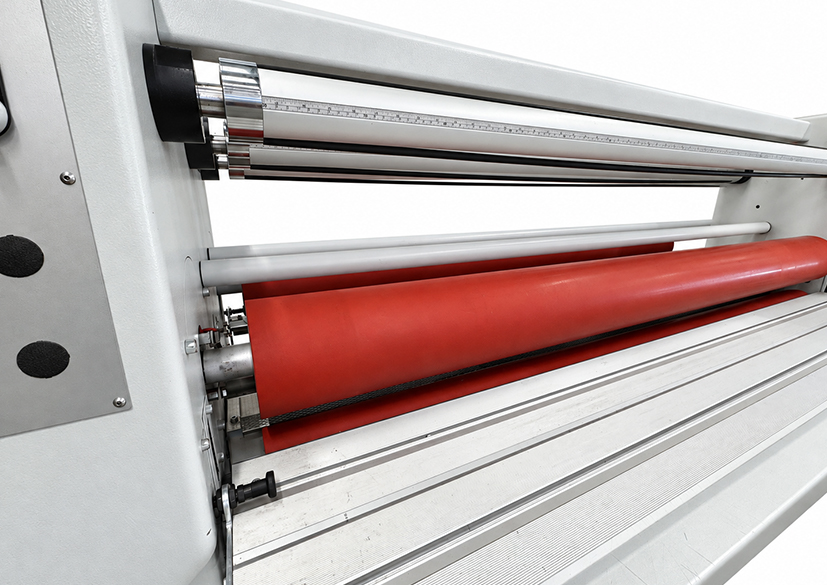

Pressure rollers and feed-in table of a used Crest MLC-1600 laminator

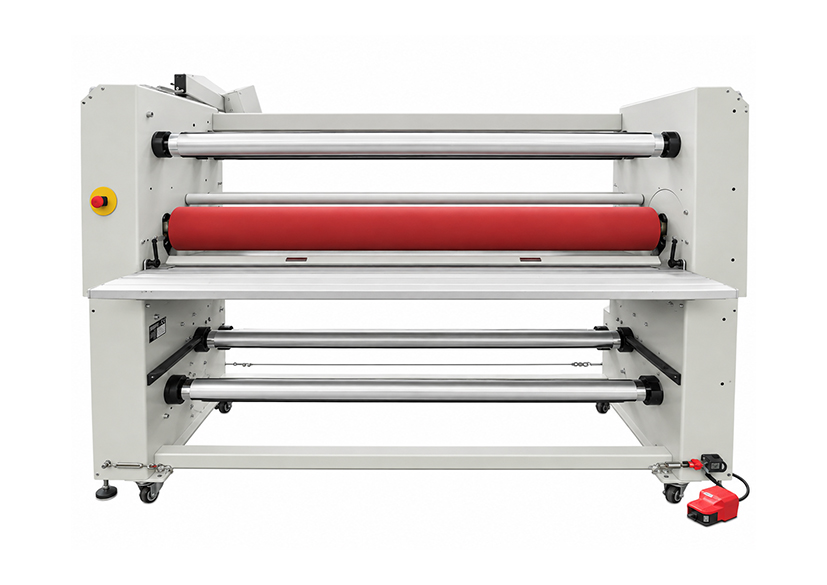

Rear view of a used Crest MLC-1600 4-roll laminator with unwind/wind-up shafts and foot pedal

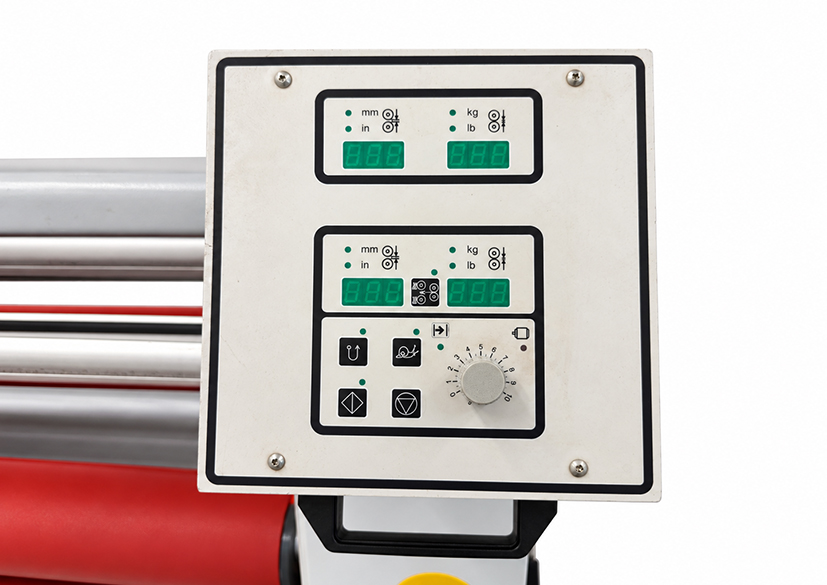

Control panel with digital read-out of a used Crest MLC-1600 laminator

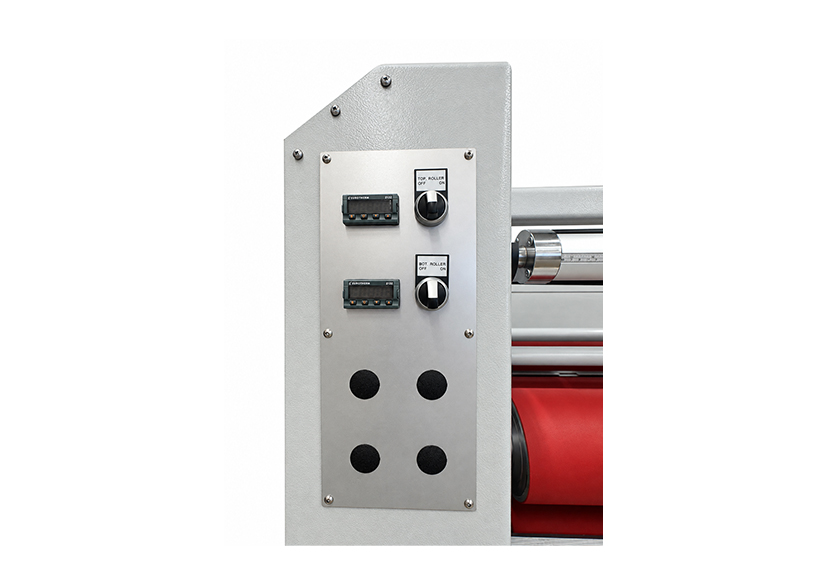

Temperature controllers for the heated rollers of a used Crest MLC-1600 laminator

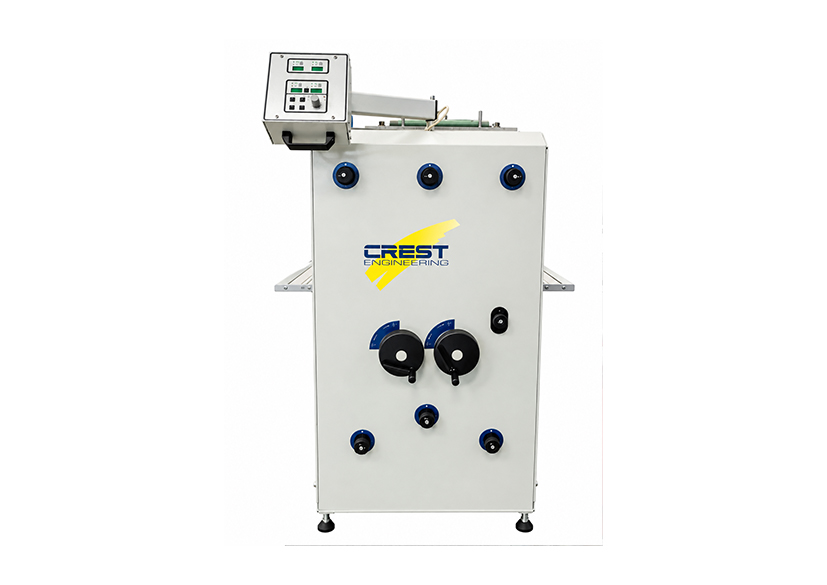

Side view of a used Crest MLC-1600 laminator with control panel on swing arm

FREQUENTLY ASKED QUESTIONS

What is the Crest MLC-1600 4-roll laminator used for?

The Modular Laminator Crest MLC-1600 is designed for high-quality adhesive coating, panel mounting, laminating and encapsulation of images up to 1575 mm wide. The 4-roll configuration adds a second roller set for pulling and finishing the laminate.

What is the condition of this machine?

This is a used, second-hand machine, offered as is. It is located in our production hall in Raalte. Ask us for its current condition and configuration before purchase.

What does the 4-roll configuration add?

A 4-roll MLC has four pressure rollers, three unwind/wind-up positions with 3+3 auto grip shafts and a swinging feed-out table. That makes it suitable for roll-to-roll work as well as mounting on panels.

What are the key specifications?

A working width up to 1575 mm, line pressure up to 2.5 N/mm with digital read-out, roller speed up to 8 m/min, a roller nip opening up to 35 mm and substrate thickness up to 30 mm. The 2 front rollers are heated, up to 135 °C.

Can the machine be upgraded?

The MLC is a Crest design with a modular concept. This machine already has 2 heated front rollers. Further options such as slitting, ionisation at the feed-in table and wrinkle control were part of the MLC programme. Ask us which options can be fitted to this machine.

What is the price?

The price is on request. Transport and installation are quoted separately. Changes to equipment or specifications will affect the price.

Does Crest arrange transport and installation?

Transport and installation are not included in the price. Crest can arrange both and provides a quotation based on your location.

Can I see the machine before buying?

Yes. The machine can be inspected at Crest Dutch Machinery in Raalte, the Netherlands. Contact us to schedule a viewing.
